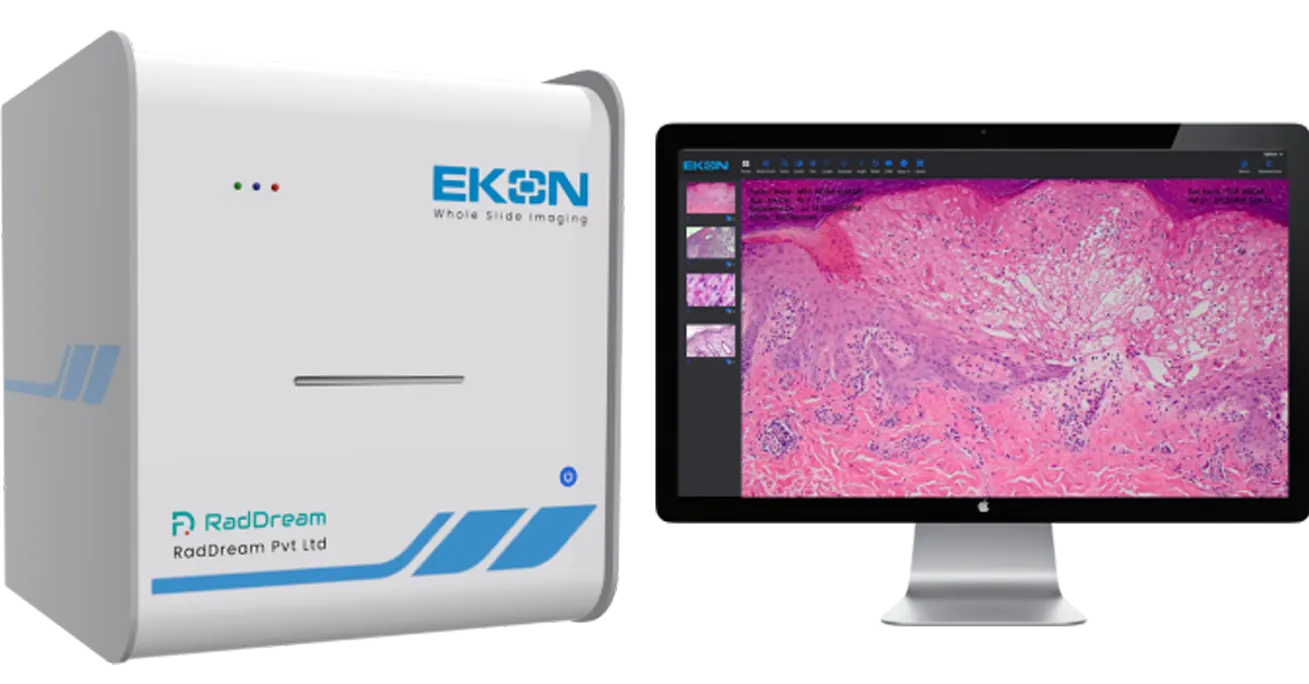

EKON 40

EKON - Good Pathology practice

EKON Whole Slide Scanner is an advanced innovation with latest state of art technology in slide scanning. EKON whole slide imaging provides a novel technology where glass slides are scanned and produces a single digital image. The images are saved in DICOM format along with Patient and other related data. There have been significant advances in whole slide scanning, the hardware and software that have allowed for ready access of whole slide images. The whole slide images can be viewed in a DICOM viewer as digital files. Whole slide imaging has increased in adoption among pathologists, pathology departments, and scientists for clinical, educational, and research initiatives.

EKON’s whole slide imaging solution aimed to improvise clinical workflow, comparing conventional microscopy to a complete digital pathology using whole slide images, evaluating the equivalency and efficiency of glass slide to whole slide image reporting, reflective of true pathology practice workloads in the clinical setting.

Whole Slide Scanning

Features
Scan area

Regular : 15 mm x 10 mm

Maximum scan area : 75 mm x 20 mm

Scan method : Auto & Manual

Scan time: 40 seconds for regular scan

Stage Movement

X, Y & Z Axis

X : 75 mm

Y : 20 mm

Z : 5 mm

Image file format

File format : DICOM

DICOM Tags : Both Public and Private DICOM Tags

Compression : Lossless compression

Image quality : High resolution

Application

In-built application for Patient management, scanning & viewing images
Optional Cloud storage

Certifications
CE
ISO
ISO for Device
Technical Specifications
Dimensions

- W 500MM | H 480MM | D 360MM

Weight

- 18 KG

Slide Type

- Cyto, Histo, Haemato, Micro

Slide Thickness

- Any Thickness

Slide Scan Area

- 75 x 25 MM Maximum

Slide Properitary

- Any Slide

Sample Position

- Auto loading & Auto Position

scanning Time

- 40 Seconds

Oil Immerssion

- Not Applicable

Image Resolution

- 2048 x 1536

Camera

- Sony 5 MP Multicolour

Camera sensor

- Sony IMX265LQR (2/3)

Objective Lens

- 40X Infinity Corrected

WSI Application

- In-built

Image Viewer

- Proprietary, ZFP Viewer

Integration with LIMS

- Yes, Optional, Payable

File Format

- DICOM

DICOM Compression

- Lossless Compression

Operating System

- In-built Linux OS

Processor

- Quad-Core 64-bit Broadcom 2711 and Cortex A72 Processor

Network adapter

- RJ 45 & USB 3.0

Internal Storage

- 128 GB

Cooling Methods

- 2 Internal Cooling Fans

PC Requirements

- No Additional PC required

Power

- 150 to 280 AC Volts

Power Consumption

- 50 watts

Monitor

- 15" HD Monitor, HDMI

Operations Monitor

- 5" LED display

Light source

- LED

Calibration Check

- For every image

Auto QC Check

- For every image

- Lens Cleaning

- Manual

Warranty

- 1 year
